UHD (4K) over 100 meters / 328 feet

The World’s most compact HDBaseT™ Certified Receiver with Control and PoH, compatible with other HDBaseT products.



UHD (4K) over 100 meters / 328 feet



Remotely powered via PoH (Power over HDBaseT) and PoE (Power over Ethernet), and optional power via 24V power adapter if your transmitter does not have PoH or PoE supply.



Bi-directional RS232, IR and CEC control signals over HDBaseT

Buy Now

World’s Most Compact Certified HDBaseT Receiver

Delivers Audio, Controls (IR, RS232, CEC) through a 3 pin connector and 4K2K resolution video up to 100 meters / 328 feet.



Certified Class A HDBaseT product, compatible with other HDBaseT products

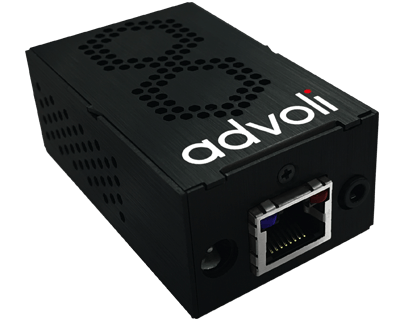

advoli RA1 Performance HDBaseT Receiver
Advoli-RA1-Universal300px

Near Universal Application

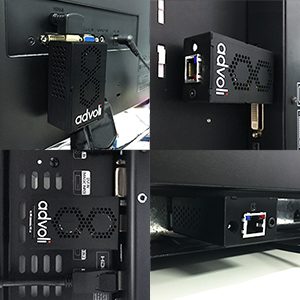

We have tested the advoli HDBaseT RA1 Performance Receiver on more than a hundred different types of displays and projectors, to ensure that we got the right dimensions to fit as many brands as possible. Size was thus a crucial part of our design to remove additional needs for cabling to reach difficult placed ports. Less devices means less cost, less electronic waste and less points of failure. We do not guarantee a fit with all products in the world, but we aim to be as compatible as possible.



For those special hard to reach cases a small pig tail or an angle extender/adapter cable will do the job.

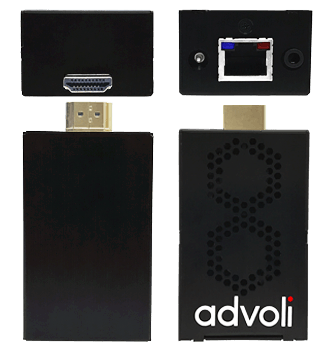

Ultra Compact

Length without HDMI™ connector: 65 mm (+/- 0.5 mm) / 2.56 inches (+/- 0.2 inches)



Length with HDMI™ connector: 78 mm (+/- 0.5 mm) / 3.07 inches (+/- 0.2 inches)



Width: 40 mm (+/- 0.5 mm) / 1.57 inches (+/- 0.2 inches)



Height: 27 mm (+/- 0.5 mm) / 1.06 inches (+/- 0.2 inches)



Weight with case: 70.85 g (+/- 0.5 g) / 2.5 oz (+/- 0.02 oz)

Advoli HDBaseT CAT Cable

CAT Cable Benefits

  1. Receive UHD (4K) video, audio and controls up to a distance of 100 meters / 328 feet, and 150 meters / 492 feet for FHD (1080P), not possible with most other competing standards
  2. Cheaper than other copper based cabling in general
  3. Lighter and more flexible than most other alternative cabling
  4. Usually much cheaper and easier to find when you need fire-proof and shielded cabling
  5. Easy to terminate onsite during installation – not possible with most other audiovisual cables.
  6. Greater features not possible with competing audiovisual standards.

SIR™ Port

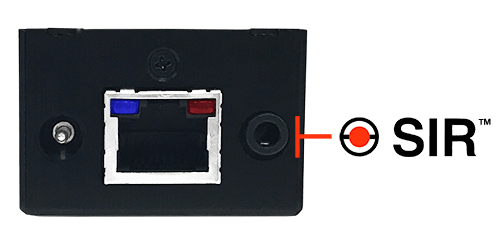

To make the advoli RA1 Receiver even smaller and more simplified we developed the SIR™ port – one port for IR receiver, IR blaster, IR in/out combination, and RS232.

Advoli-RA1-SIR-Port 3
Advoli HDBaseT Diagnostics Console

Information Source & Diagnostics

The advoli RA1 Performance Receiver is packed with environmental sensors/controls/information: voltages, temperature sensors, fan speeds, operational hours, power cycles, display/projector connectivity, pass through of raw EDID information and much more.



This gives the end user via the Advoli HDBaseT Graphics Cards and RA1 Performance, control over audiovisual installations all the way down to the displays and projectors, to more effectively and remotely diagnose problems reducing the need to send technicians on-site – saving costs.



With a future web-based interface, diagnosis and notification service on installations can be fully automated ensuring higher up-time and faster fixes.

Designed to Reduce Temperature

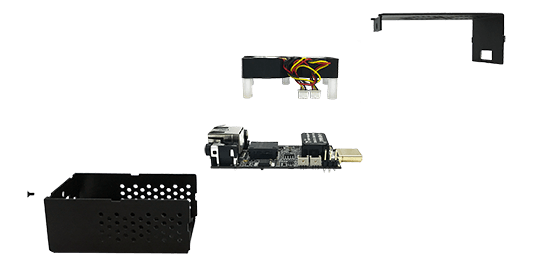

When creating ultra-compact audiovisual products, increased temperature is a worry. To address this concern, advoli designed the RA1 Receiver so that the HDBaseT chipset is placed directly on to the surrounding case.



The placement of the chip and casing makes the entire external metal case an effective heatsink. Using the case as a heatsink significantly reduces the temperature of the chip to lower than several tested competing fanless products that rely on large PCB and convection via heatsinks to cool the chip. We have built the receiver with two high grade fans, same as used in projectors to ensure lowest operating temperature. With advoli’s smart redundancy fan design, should one fan stop working the other fan will start.



In addition, should both fans fail, we have built the receiver using high grade components that can withstand high temperatures, allowing for our receiver to function at ambient temperatures up to 50C / 122F.

advoli TA6 Performance

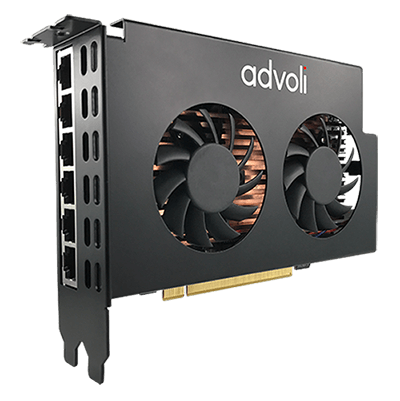

Compatible with our TA6 Graphics Cards

advoli RA1 Performance is made to partner up with our advoli TA6 Performance and advoli TA6 Distance graphics cards in kits to ensure you get the full distance and features of both our receiver and graphics cards.



advoli RA1 Performance can also be used with the advoli TB6 Standard graphics card, but the distance will be limited by the TB6 Graphics Card.



advoli RA1 Performance is also compatible with other HDBaseT products e.g. matrix switches and TX extenders.

Accessories

Not all audiovisual installations require every type of control. Using our  SIR™ port you can decide what control you want to use without the increase in size from having unused ports. One port serves the functionality of four.



Choose from the following accessories:

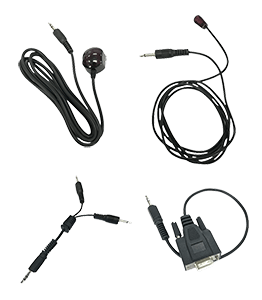

1. SIR to IR transmitter / IR blaster
2. IR receiver to SIR
3. SIR to IR in and out
4. SIR to RS232

Advoli RA1 Accessories

Key Features

  • Can receive one FHD (1080P) video content over 150 meters / 492 feet or UHD video over 100 meters / 328 feet using a class A HDBaseT transmitter.
  • HDBaseT Certified product
  • Built in HDBaseT and Environmental Diagnostics and pass through EDID
  • Bi-directional controls for Infrared, CEC and RS232
  • PoH / PoE compatible and optional power via power adapter

Minimum System Requirements

  • HDBaseT CAT cable that allow for FHD (1080P) video content over 150 meters / 492 feet or UHD (4K) over 100 meters / 328 feet
  • HDMI compatible display or projector
  • Optional power 24V power adapter.
  • HDBaseT Class A Transmitter for reach – should ideally have a PoH / PoE injection

In The Box

  • advoli RA1 Performance Receiver Card
  • 24V Power Adapter
  • Optional RS232/IR cables
PRODUCT SPECIFICATION
CABLE DISTANCE
Max Distance CAT5e/CAT6 LR Mode 1080p 60Hz @ 150m
1080p 60Hz @ 100m
UHD 30Hz @ 70m
Max Distance CAT6a/CAT7 LR Mode 1080p 60Hz @ 150m
1080p 60Hz @ 100m
UHD 30Hz @ 100m
VIDEO
# of HDBaseT Rx Channels 1
1 x RJ45 Connectors
HDCP 1.4 / 2.2 Compatible pass through
HDMI 1.4 / 2.0 Compatible pass through
300 MHz Pixel Clock Limitation
3D Compatible
Resolution 4K DCI 4096×2160 24Hz/25Hz/30Hz
4096×2160 50Hz/60Hz @ chroma subsampling 4:2:0 8-bit
3840×2160 24Hz/25Hz/30Hz
4K UHD 3840×2160 50Hz/60Hz @ chroma subsampling 4:2:0 8-bit
2048x1080p
FHD 1080p 23.98Hz/24Hz/25Hz/29.97Hz/30Hz/50Hz/59.94Hz/60Hz
1080i 50Hz/59.94Hz/60Hz
720p 50Hz/59.94Hz/60Hz
576p, 576i, 480p, 480i
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color
AUDIO
Pass-Through All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital, DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
AUDIO
Pass-Through All formats supported by HDMI 1.4 and HDMI 2.0
All major digital audio formats, including: Dolby Digital, DTS, Dolby TrueHD,
DTS HD-Master Audio, Dolby Pro Logic Iiz 7.1 & 9.1,
CONTROLS
Diagnostics HDBaseT™
 Diagnostics when paired with advoli HDBaseT Graphics Card
Environmental
 Diagnostics when paired with advoli HDBaseT Graphics Card
Electrical Diagnostics when paired with advoli HDBaseT Graphics Card
Infrared External IR Receiver Type A – 3 Pin Audio Jack Connector
External IR Transmitter Type A – 3 Pin Audio Jack Connector
RS232 External In/Out – 3 Pin Audio Jack Connector
(Virtual COM port)
max baud rate: 115,200 bps
CEC Compatible Pass through
EDID Management Raw EDID pass through
PHYSICAL
Fan 2 maglev fans
Dimensions L: 65 mm H: 27 mm W: 40 mm
L: 2.56 inches H: 1.06 inches W: 1.57 inches
Weight 70.85 g (+/- 0.5 g) / 2.5 oz (+/- 0.02 oz)
Form Factor Dongle
ENVIRONMENTAL
Operating Temperature 0°C to 50°C / 32°F to 122°F
With or without fans
Storage Temperature -20°C to 60°C / -4°F to 140°F
Humidity 20 to 90% non-condensing
Power 8W
Power Supply Optional if you use Power over HDBaseT (PoH) or Power over Ethernet (Poe)
Input: AC 100V – 240V – 50Hz / 60Hz, 0.4A -0.2A
Output: DC 24V, 500mA, 12W Max
REGULATORY COMPLIANCE
United States FCC
Canada IC
Europe CE
Japan VCCI
Australia & New Zealand C-Tick
HDBaseT Certified

Third party testing lab completed, submitting documents to each regulatory body.

Product Specification & Installation Guide

A dive into the technical performance, functionality and dimensions of the HDBaseT™ Certified advoli™ RA1 Performance Receiver dongle.
